1. Main technical parameters

Outdoor full color P2.5 (1415)

P2.5 Outdoor Full Color Display SMD1415(1R1G1B)

2. Product Features

★ Adopt standard universal 160*160mm size display module.

★ High-quality lamp beads, tested by multiple high and low temperature experiments and scanning stratifiers, with high cost performance and stable performance.

★ The box is universal between standard modules, which shortens customer delivery time. When customers replace products at different points, the steel structure can be universal;

★ The product has high brightness, high refreshment, and high protection level, suitable for outdoor media advertising and other occasions.

★ Independently developed and produced kits and masks, vertical and horizontal reinforcement design, efficient dust protection, uniform ink color, solid and smooth, and anti-ultraviolet module kit, ensuring that the screen is flat and does not deform, and the display effect is better.

★ Mature products for outdoor high-definition LED displays, leading the same industry in various specifications, and mature cases all over the world.

★ Modular design, low installation and maintenance costs, fast speed, and can be equipped with electric hot plug.

★ Mature optional supporting solutions such as camera, wired, 3G, WIFI technology, cloud broadcast control, and full network access. Supports mainstream format playback and supports DVI HDMI 3G/HD/SD three-speed SDI HD display mode. The broadcast-level color gamut, the color temperature and brightness are intelligently adjustable, the colors are uniform, the contrast is high, and the picture is beautiful and natural.

★ It is mainly used in outdoor advertising media, government and enterprise engineering, cultural tourism, sports competitions, image publicity, and commercial real estate.

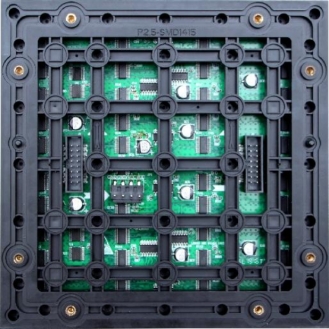

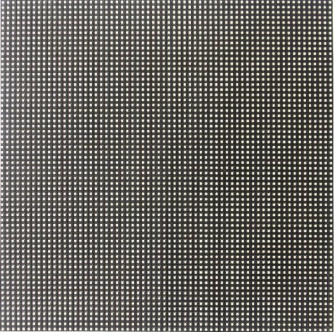

3. Module picture display

Module features:

·Unique mask design, dark black color and high contrast.

·Unified module size 160*160mm.

·Symmetrical, uniform, strong and flat.

·The module uses SMD1415 lamp, and the product has the characteristics of good heat dissipation and good weather resistance.

· Constant current drive, 1/16S scan.

· The product has high brightness, with a brightness of more than 4500 cd/m2, and has the advantages of good light distribution curve and good angle consistency.

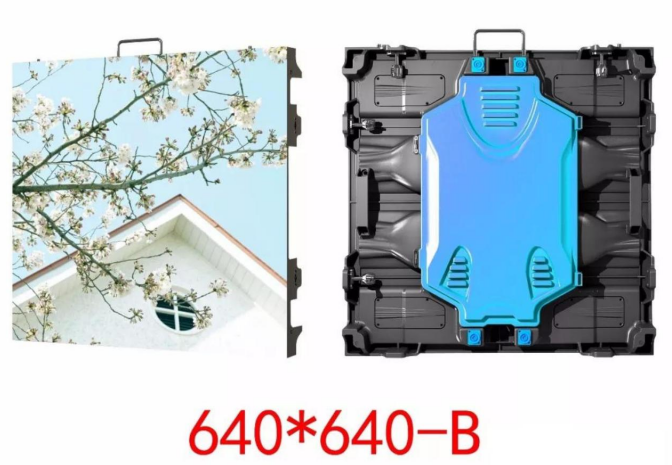

4. Box picture display

Box features:

 ·960*960mm standard iron box, suitable for all 160*160mm modules.

·Unified installation hole position, unified waterproof rubber ring, unified screw specification, unified power cord, interface, unified box specification, unified packaging size, and unified steel structure design.

· IP65 waterproof rating.

5. Packaging method

The packaging is made of high-quality cartons, each carton size is 580*400*315mm, each carton has 60 pieces of packaging, and each box weighs 19.6KG. The mold set is equipped with corner guard sleeves, overheating and shrink film packaging, and contains pearl cotton corner guards, which effectively avoid product damage caused by collision during transportation and transportation.

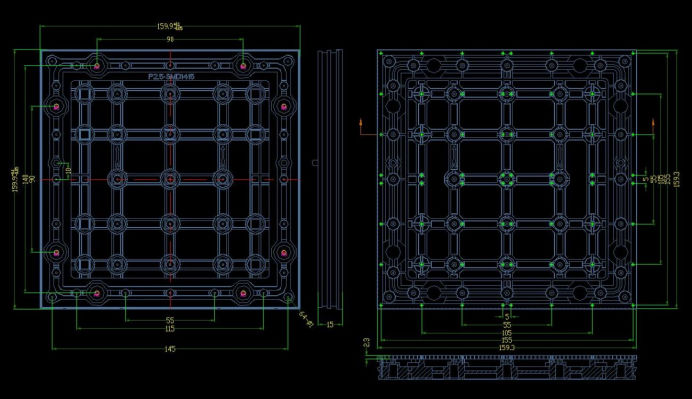

6. Module installation hole position

Note: The unit of all dimensions is mm; the shape tolerance is ±0.2 and the aperture tolerance is ±0.1.

7. Installation method (simple diagram of the display installation structure)

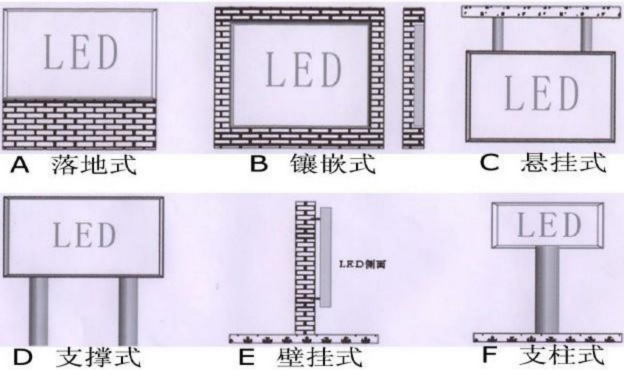

Note: The above are six commonly used installation methods in the installation of display screens. For indoor display screens, four installation methods are generally adopted: A\B\C\D, and the above methods can be used for outdoor display screens.

8. Checking matters before installation of display structure

1. Is the underlying structure solid?

2. Whether the width and height of the structure are accurate, it is generally 20mm-50mm larger than the display screen size;

3. The distance between the square cylinder and the square cylinder must be strictly consistent from the bottom layer to the top layer, otherwise there will be gaps during installation. In severe cases, it will be difficult to install or not to install, resulting in rework;

4. Check whether the channel position in the structure is appropriate and whether it will block the rear cover door of the box. Otherwise, after the screen is installed, the rear cover door of the box cannot be opened;

5. Will the wiring holes on both sides of the screen be blocked?

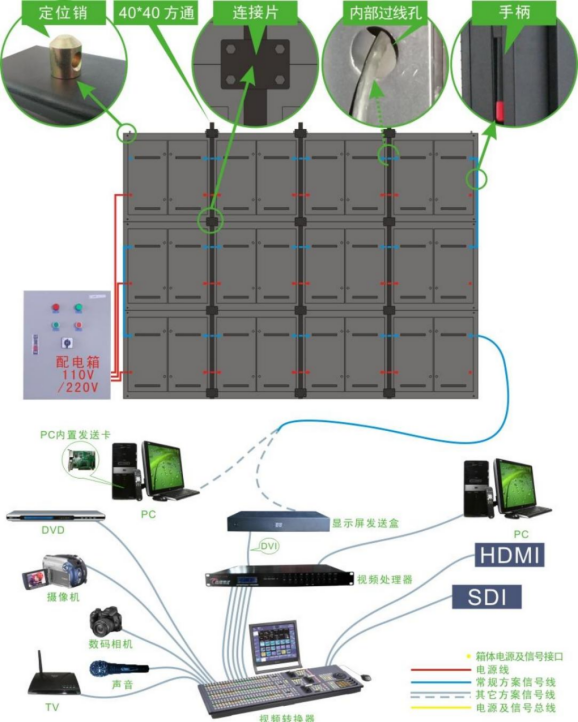

9. Disassembly, assembly, maintenance, and wiring operation diagram

Note: Our company will continue to upgrade and improve the existing products. The specifications are subject to change without notice. The right to interpret the specifications, models and technical indicators of this product belongs to our company.
